TMT Bars

Meenakshi TMT FE 550D

Strong Bonds Stronger Buildings

Premium Quality TMT Bars

Corrosion and seismic resistance
TMT bars that provide ultimate foundational support for constructions.

Applications

High rise buildings, residential buildings, industrial structures, nuclear power plant, airports & railways.

Meenakshi
TMT FE 550D

Strong Bonds Stronger Buildings

Premium Quality TMT Bars

Corrosion and seismic resistance TMT bars that provide ultimate foundational support for constructions.

Applications

High rise buildings, residential buildings, industrial structures, nuclear power plant, airports & railways.

FE550D TMT BARS
D for Ductility

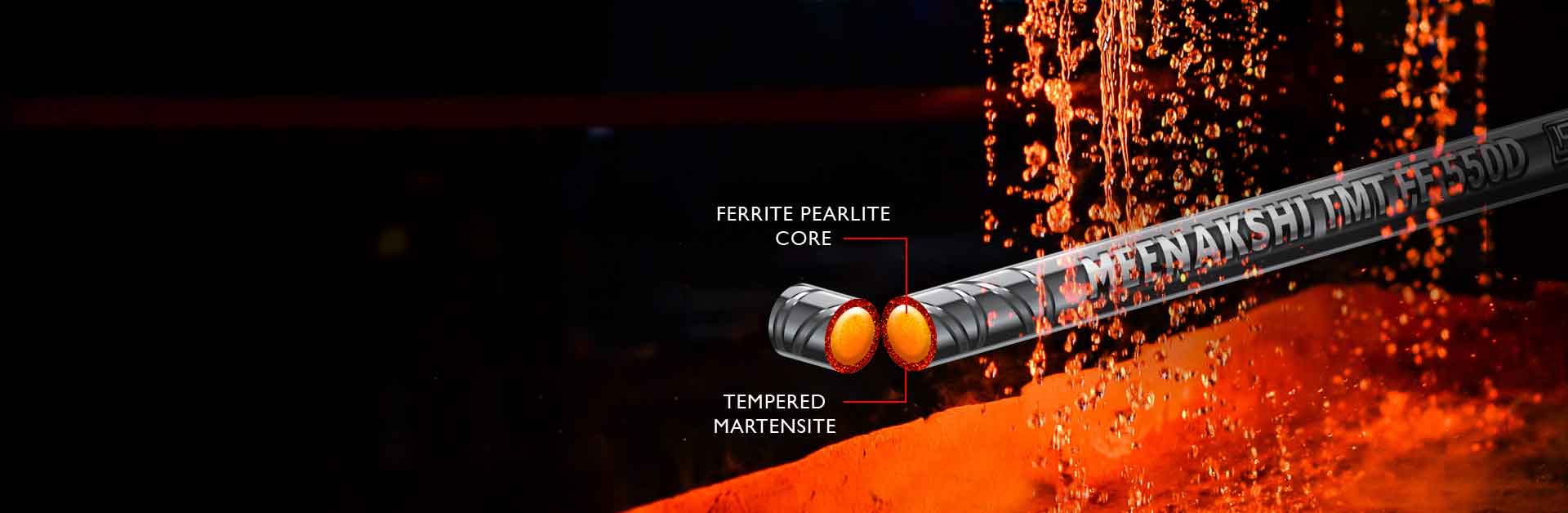

Meenakshi TMT bars have a flexible-pearlite core and a robust martensite external surface that makes the bar more weldable and ductile.

  • Earthquake resistance
  • Higher load absorption
  • Unbreakable ductility
  • Flexible TMT
  • Higher elongation before breaking
MEENAKSHI TMT
Unbreakable
Ductility

How we achieve this?

  • Strict quality control measures
  • Ensure lowest sulphur & phosphorus content

Why D is the best choice for all infrastructures?

  • Higher bendability that helps bar-benders bend the rods
  • Soft inner core
  • Higher elongation before breaking
  • Shock absorbent
  • The flexibility that protects the infrastructure
MEENAKSHI TMT
Z Ribs

The revolutionary Z Ribs Technology developed by Meenakshi TMT offers unmatched bonding with concrete and is proven to give long-lasting strength to all construction projects.

WHY Z RIBS?
UPTO 30% BETTER BONDING WITH CEMENT
BETTER STRENGTH AS A RESULT OF BETTER BONDING
WHY MEENAKSHI FE550D
15% Savings

Meenakshi TMT bars have a flexible-pearlite core and a robust martensite external surface that makes the bar more weldable and ductile.

Strong foundational support

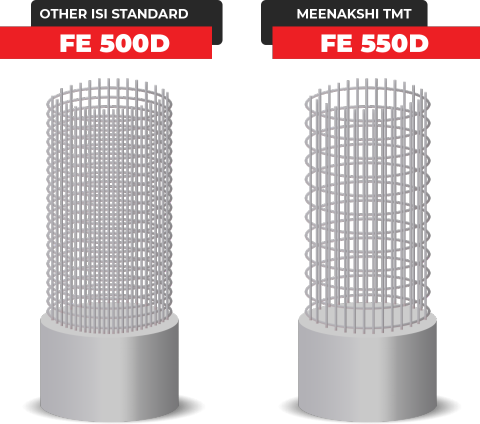

Save upto 15% on steel consumption by using lesser number of rebars

Lesser steel consumption helps in saving construction time

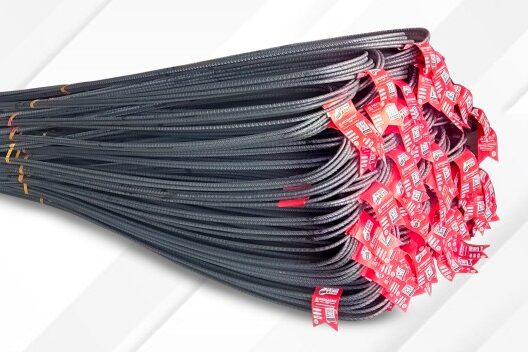

Fish Bundles
Expertly strapped bundles

Easy loading unloading

Lesser storage space requirements

Easier transportation

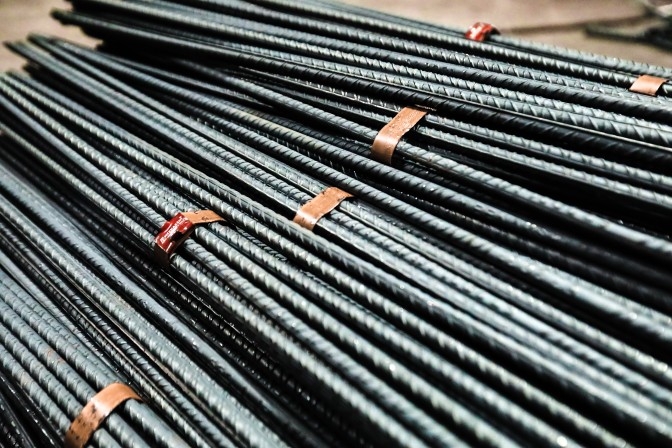

Strapping
System to ensure zero pilferage

Zero pilferages and theft

Standard bundle sizes

Labour friendly for loading and unloading the product

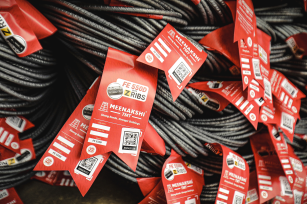

Tagging & QR Code
Access information specific to every batch

Digital test certificates

Rod size, lot number, mechanical & chemical composition

Quality control measures

Product USP's

Better Weldability

Superior Bonding Strength

Cost Effective

Better Weldability

Superior Bonding Strength

High load absorption capacity

Cost Effective

Unbreakable ductility

Earthquake resistant

High load absorption capacity

Unbreakable ductility

Earthquake resistant

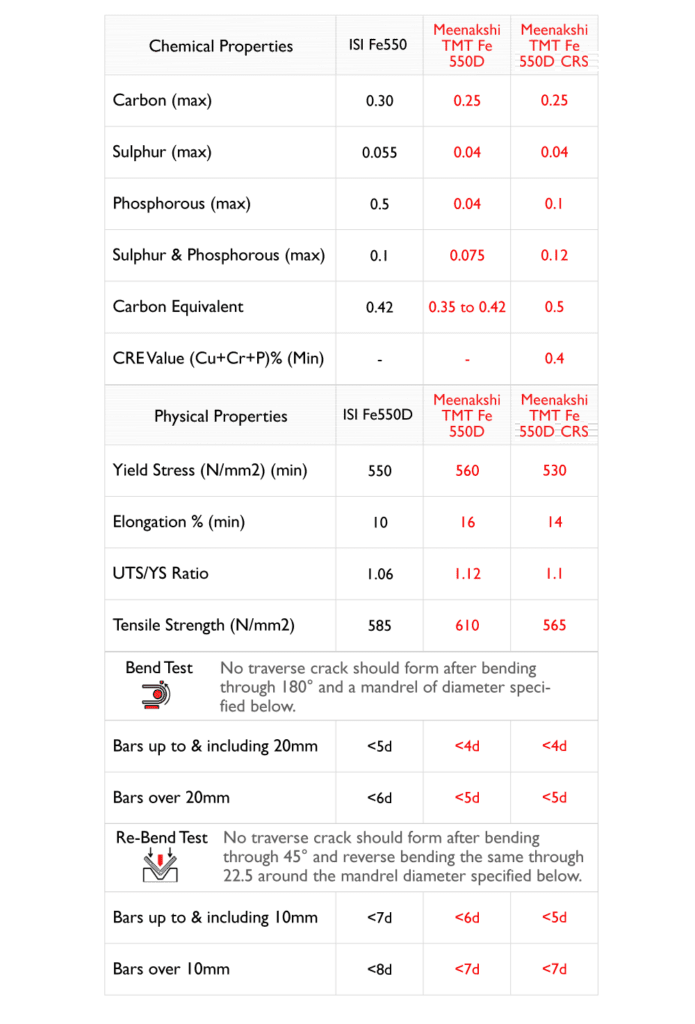

PROPERTIES

PROPERTIES

Chemical Properties

Carbon (max)
Sulphur (max)
Phosphorous (max)
Sulphur & Phosphorus (max)
Carbon Equivalent
CRE Value (Cu+Cr+P)%(Min)
ISI Fe550D
0.30 0.055 0.5 0.1 0.42 -
Meenakshi TMT FE 550D
0.25 0.04 0.04 0.075 0.35 to 0.42 -
Meenakshi TMT FE 500 CRS
0.25 0.04 0.1 0.12 0.5 0.4

Physical Properties

Yield Stress (N/mm2) (Min)
Elongation % (Min)
UTS/YS Ratio
Tensile Strength (N/mm2)
ISI Fe550D
550 10 1.06 585
Meenakshi TMT FE 550D
560 16 1.12 610
Meenakshi TMT FE 500 CRS
530 14 1.1 565
Bend Test
Asset 13Meenakshi

No traverse crack should form after bending through 180° and a mandrel of diameter specified below.

Bars up to and including 20mm

<5d

<4d

<4d

Bars over 20mm

<6d

<5d

<5d

Re-bend Test
Asset 14Meenakshi

No traverse crack should form after bending through 45° and reverse bending the same through 22.5 around the mandrel diameter specified below.

Bars up to and including 10mm

<7d

<6d

<5d

Bars over 10mm

<8d

<7d

<7d
