CRS TMT Bars

Meenakshi TMT FE 550 CRS
Premium Corrosion Resistant TMT Bars
CRS - Corrosion Resistant Steel

TMT bars are produced with corrosion resistance elements such as copper, chromium and phosphorus.

Applications

Underground environments, dams, bridges, public and private buildings, underwater structures, marine structures

Meenakshi
TMT FE 550 CRS

Premium Corrosion Resistant TMT Bars

CRS - Corrosion Resistant Steel

TMT bars are produced with corrosion resistance elements such as copper, chromium and phosphorus.

Applications

Underground environments, dams, bridges, public and private buildings, underwater structures, marine structures

Why CRS TMT Bars?

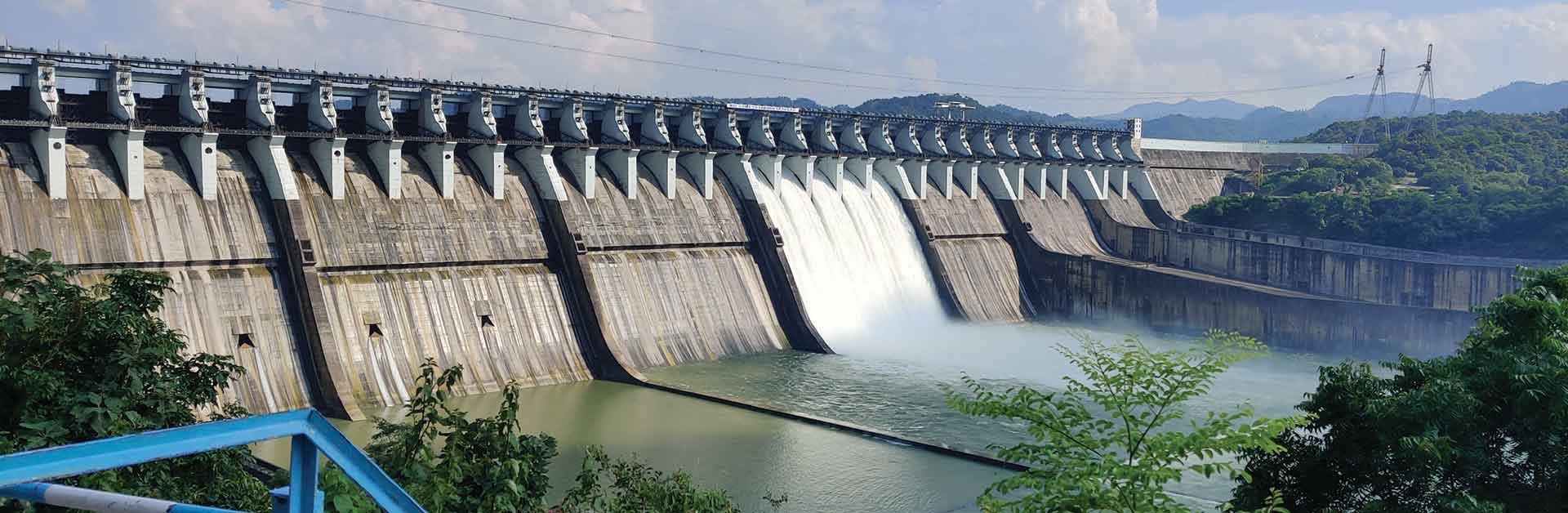

Meenakshi TMT FE 500 CRS bars are used in building constructions that have higher risk of corrosion due to exposure to coastal, marine or underground environments such as dams, bridges, public or private buildings and underwater and marine structures etc.

Product USP's

Ideal for all structures

Extreme ductility

Longer life span

Corrosion resistant

Stringent quality control

On site rust resistance

Ideal for all structures

Extreme ductility

Longer life span

Corrosion resistant

Stringent quality control

On site rust resistance

PROPERTIES

PROPERTIES

Chemical Properties

Carbon (max)
Sulphur (max)
Phosphorous (max)
Sulphur & Phosphorus (max)
Carbon Equivalent
CRE Value (Cu+Cr+P)%(Min)
ISI Fe550D
0.30 0.055 0.5 0.10 0.42 -
Meenakshi TMT FE 550D
0.25 0.04 0.04 0.075 0.35 to 0.42 -
Meenakshi TMT FE 500 CRS
0.25 0.04 0.1 0.12 0.5 0.4

Physical Properties

Yield Stress (N/mm2) (Min)
Elongation % (Min)
UTS/YS Ratio
Tensile Strength (N/mm2)
ISI Fe550D
550 10 1.06 585
Meenakshi TMT FE 550D
560 16 1.12 610
Meenakshi TMT FE 500 CRS
530 14 1.1 565
Bend Test
Asset 13Meenakshi

No traverse crack should form after bending through 180° and a mandrel of diameter specified below.

Bars up to and including 20mm

<5d

<4d

<4d

Bars over 20mm

<6d

<5d

<5d

Re-bend Test
Asset 14Meenakshi

No traverse crack should form after bending through 45° and reverse bending the same through 22.5 around the mandrel diameter specified below.

Bars up to and including 10mm

<7d

<6d

<5d

Bars over 10mm

<8d

<7d

<7d
